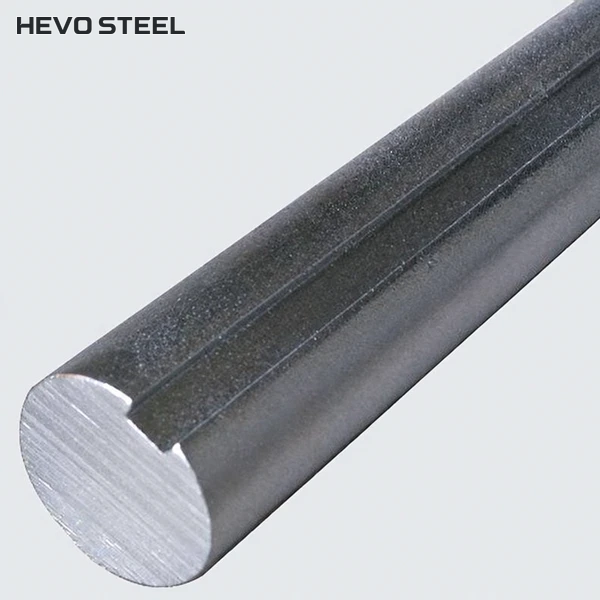

Solid Shaft with Keyway for Garage, Industrial, and Commercial Doors

HEVO STEEL supplies solid carbon-steel shafts with a longitudinal keyway for industrial and garage door systems. The solid section, keyway geometry, shaft length and mating components must be considered together. Send your drawing and quantity so we can review the material, dimensional requirements, finish and delivery arrangement.

MATERIAL AND Specifications

Manufacturing and Delivery Requirements

1. Material Selection & Cold Drawing

A solid keyway shaft is made from solid steel stock. The shaft diameter and longitudinal keyway follow the agreed drawing; material condition and subsequent machining are specified for the intended assembly. This product is not made by treating a hollow tube as a solid shaft.

2. Annealing (Heat Treatment)

Heat treatment is selected for the required material and delivery condition. Where annealing is specified, its purpose may include:

Increases ductility and toughness
Softens the steel for better machinability
Relieves internal stresses
Refines the grain structure, making it more homogeneous
Improves the shaft’s cold working properties

3. Precision Straightening

Straightening requirements are agreed from the shaft drawing. Specify the measurement method, reference length and permitted deviation so that the delivered shaft can be checked consistently.

4. Surface Treatment Options

We offer several high-performance surface finishes to protect your shafts and extend their service life:

Zinc-based Surface Protection: A zinc-rich coating that provides excellent corrosion resistance and a smooth, uniform finish.
Specified Zinc-flake Coating: Specify the required zinc-flake coating system, acceptance criteria and any restricted-substance requirements.
Black Oxide Finish: A sleek, uniform black color that reduces glare and adds mild corrosion protection.

The coating type, thickness, dimensional allowance and acceptance requirements must be agreed before processing.

5. Rigorous Inspection

The inspection plan follows the agreed drawing and order requirements. Define the checks needed for diameter, straightness, keyway geometry, ends and surface condition, together with the records required at delivery.

Drive shaft Specifications for Garage, Industrial, and Commercial Doors

Parameter	Confirmed value
Solid shaft diameter
Keyway width and depth
Length and straightness
Material and finish

Numerical values will be completed after the drawing and available supply have been confirmed.

Why choose HEVO STEEL ?

Discuss your solid keyway shafts requirements with HEVO STEEL. We will review the material, dimensions, processing and delivery scope before confirming a quotation.

Choose HEVO STEEL for solid shafts with keyway that deliver precision, durability, and reliable performance-backed by advanced manufacturing and strict quality control.

Factory Direct

We coordinate our own production and partner-factory supply against the agreed order requirements.

Craftsmanship & Technology

Combining traditional expertise with advanced machinery, we deliver tubes with exceptional surface finish and tight tolerances.

Inspection Requirements

Specify the inspection and documentation your order requires so the supply scope can be confirmed.

Customization

We offer a wide range of sizes, materials, and finishes to meet your specific requirements.

Specifications

all in one company of PRECISION DRIVE SHAFT

HEVO STEEL combines its own production with partner-factory processing and supply. The manufacturing route, inspection requirements and included operations are defined for each order. Equipment and process examples illustrate the work involved; they do not mean every operation is performed in one facility.

Discover more details…

Pipe piercing machine

Acid washing, Phosphating treatment , Saponification process for cleaning steel tubes at HEVO STEEL LLC

Acid washing, phosphating, saponification

Chain cold drawing machine for seamless steel tube production by HEVO STEEL LLC

cold drawn machine

cold rolling machine

Annealing furnace

Multi-roller straightening machine

Point straightening machine

CNC machining center processing seamless steel tubes at HEVO STEEL LLC

CNC Center

SRB and honing machine finishing internal surfaces of steel tubes at HEVO STEEL LLC

SRB Machine | Honing Machine

Chemical composition analyzer

Tensile testing machine

Hardness Tester

APPLICATIONS OF DRIVE SHAFT

HEVO STEEL ’s drive shafts are essential components in the automation and operation of various types of doors across residential, commercial, and industrial settings.

Processing, Surface Treatment and Packing

At HEVO STEEL, our solid shafts with keyway are expertly manufactured through advanced cold drawing, annealing, straightening, and premium surface finishing, rigorously inspected to meet strict quality standards, securely packed for safe delivery, and supported by value-added services such as custom sizing and technical consultation to ensure optimal performance for your door systems.

Value Added Services

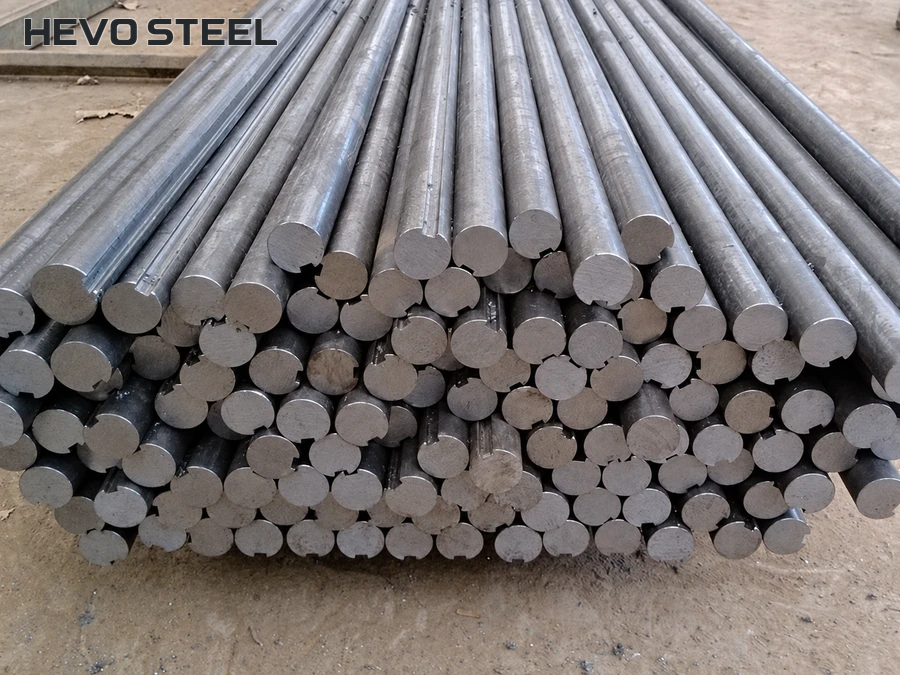

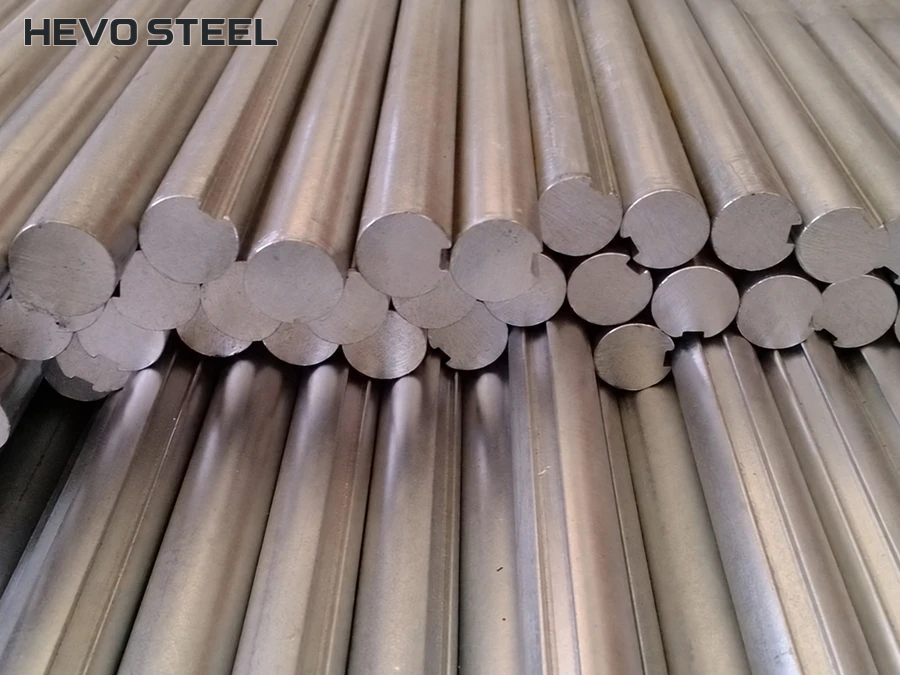

Long solid grooved shaft stock stacked with cut ends visible.

Cutting to length

Cold Drawn

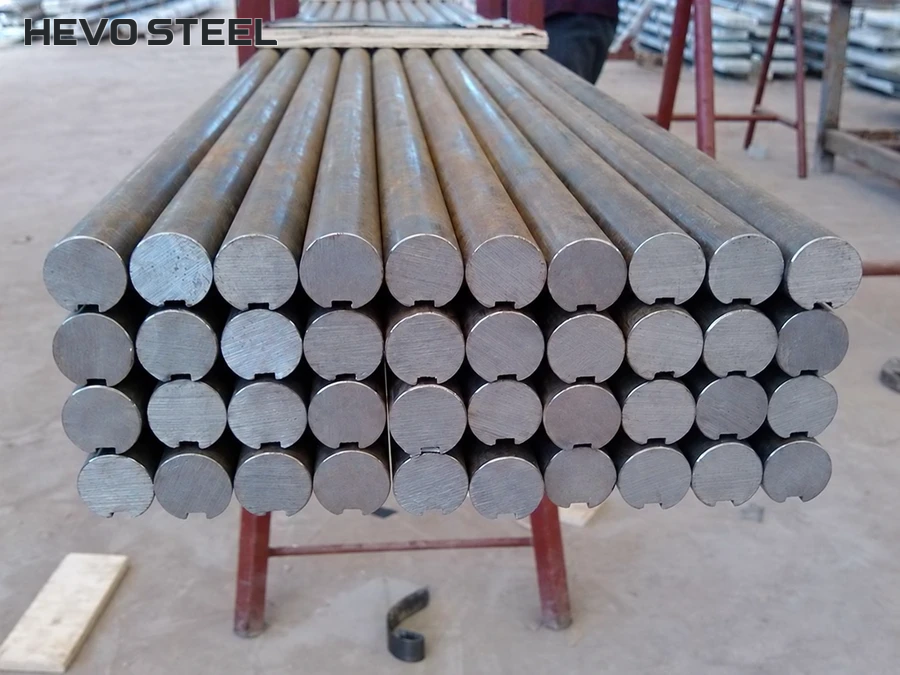

Grooved solid shaft stock resting on a wooden support.

Solid Shaft Package

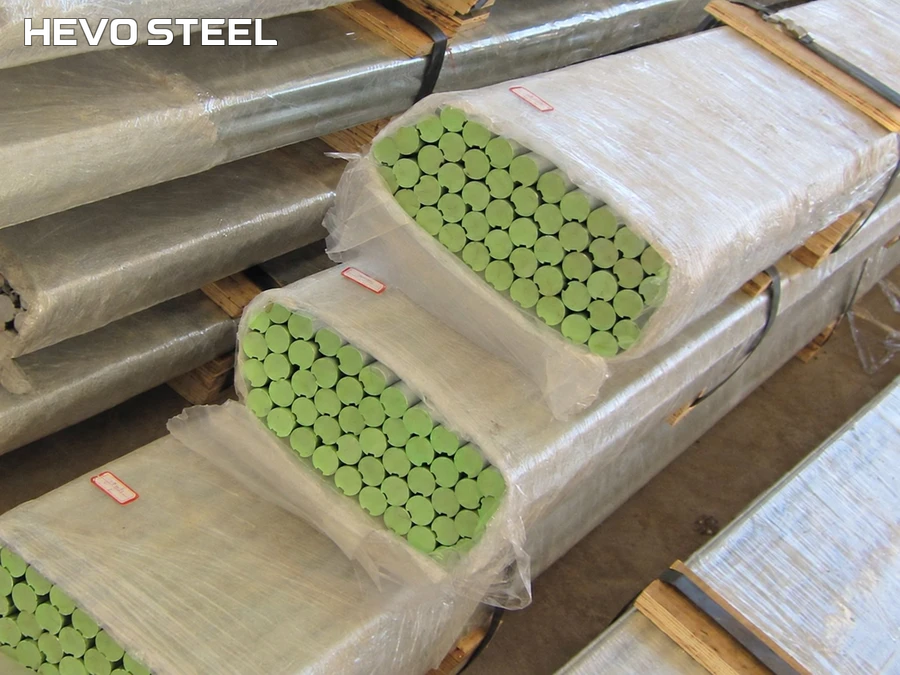

Wrapped bundles of solid rod stock with green end markings and timber supports.

Marking Painting

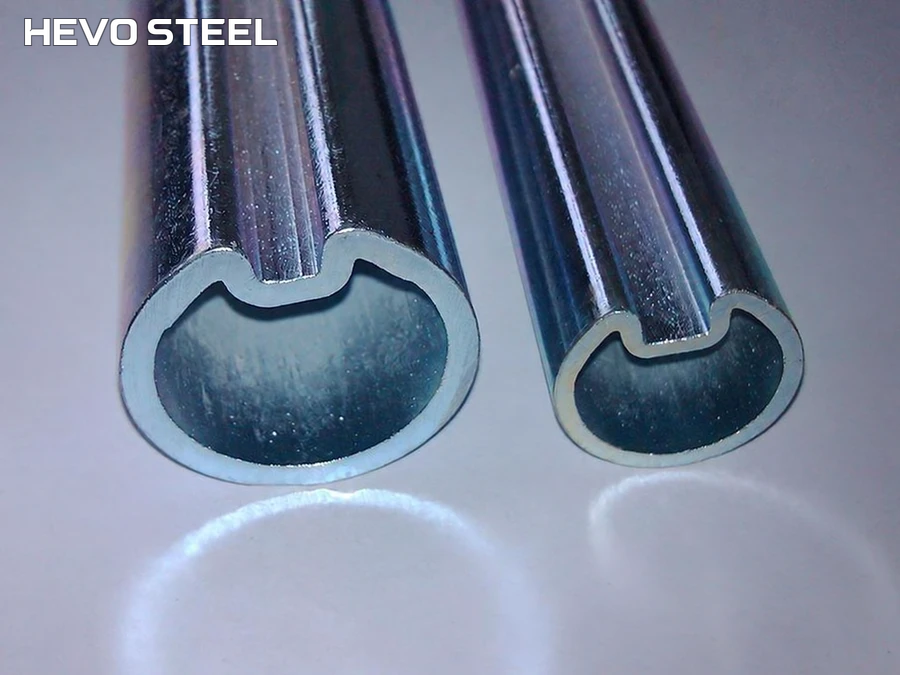

Two hollow tubes with inward-formed grooves, showing the ends and surrounding walls.

Hollow Shaft with Zinc

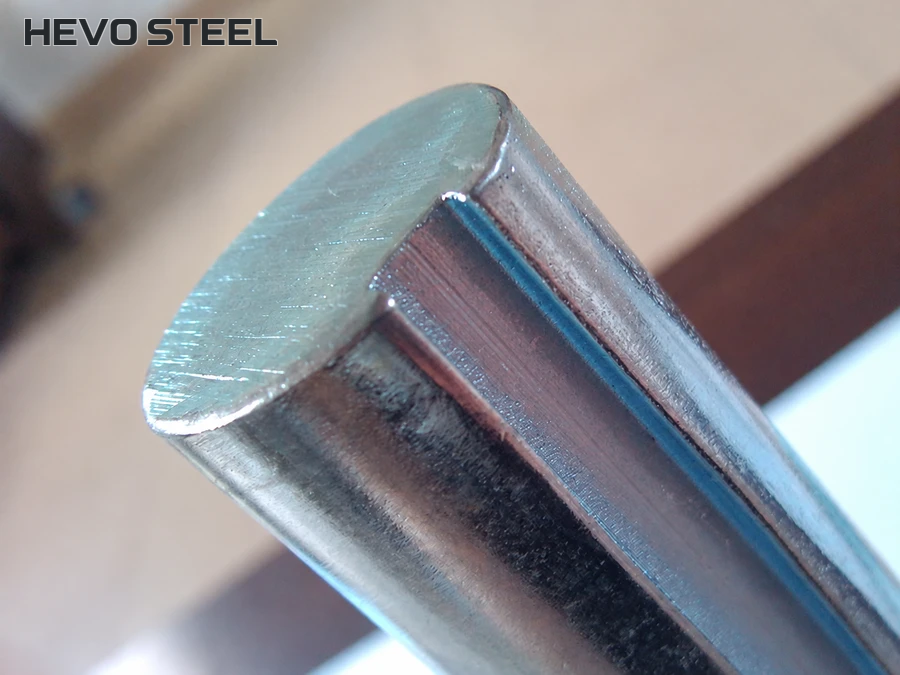

Close view of a solid keyway shaft end and the root of its longitudinal groove.

Solid Shaft with Zinc

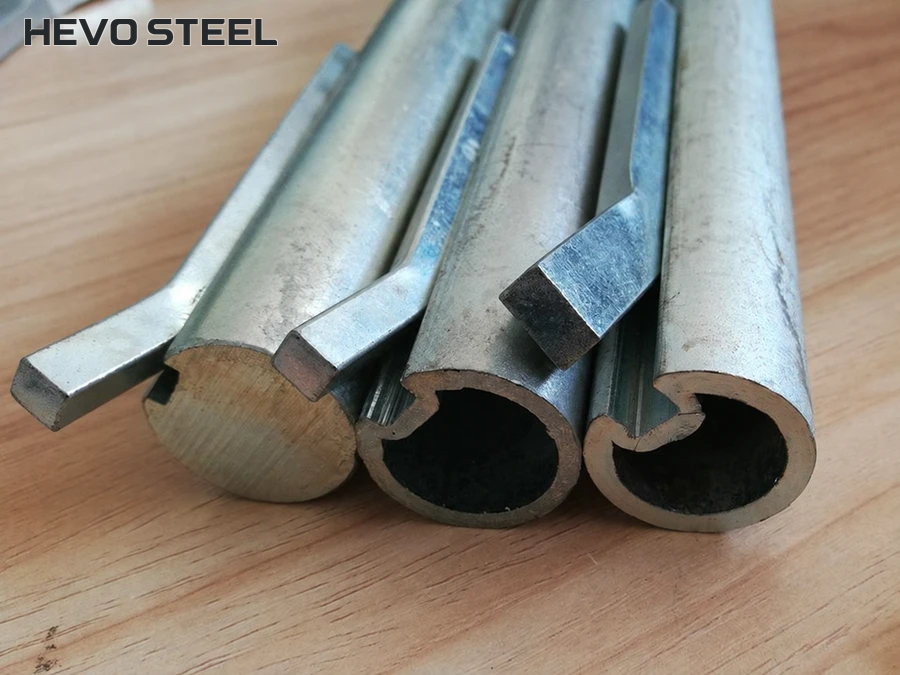

Solid grooved stock and hollow grooved tubes shown together with loose keys.

Drive Shaft with Keys

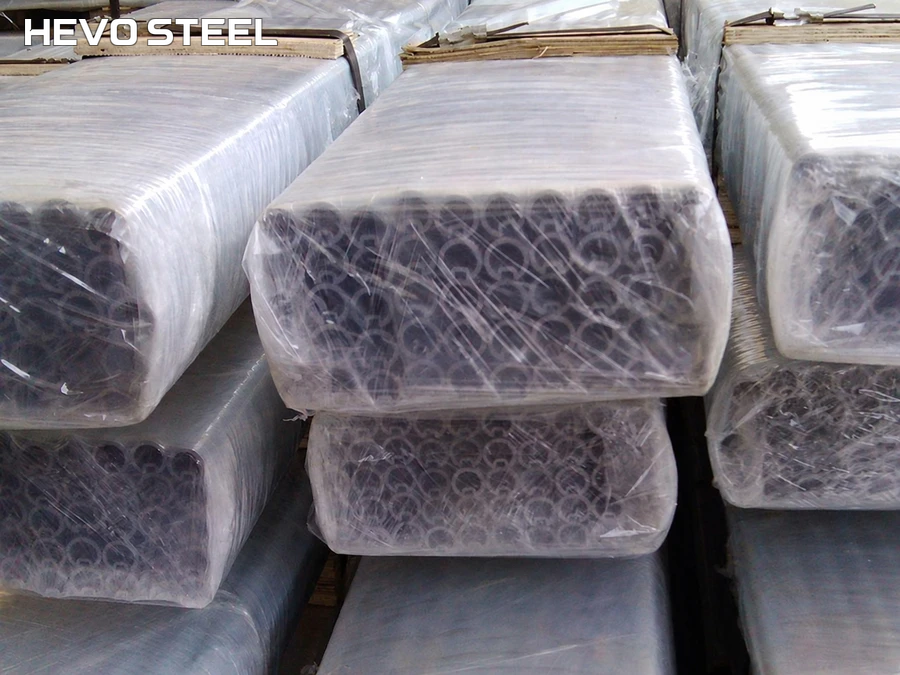

Bundles of grooved hollow tubes with protective wrapping around their ends.

Drive Shaft Packing

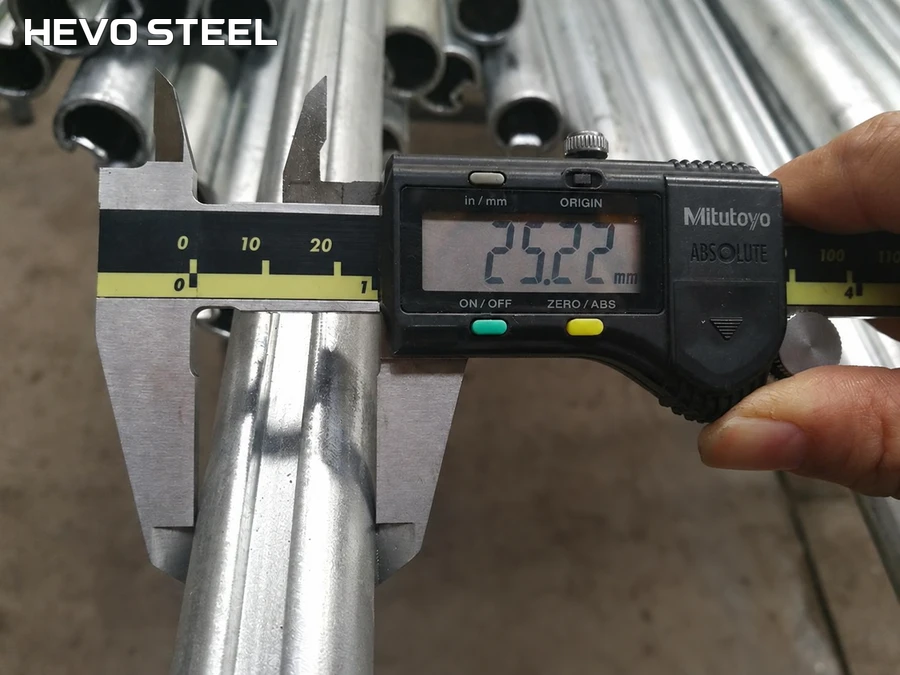

Digital caliper positioned across the outside of a grooved hollow tube.

Drive Shaft OD

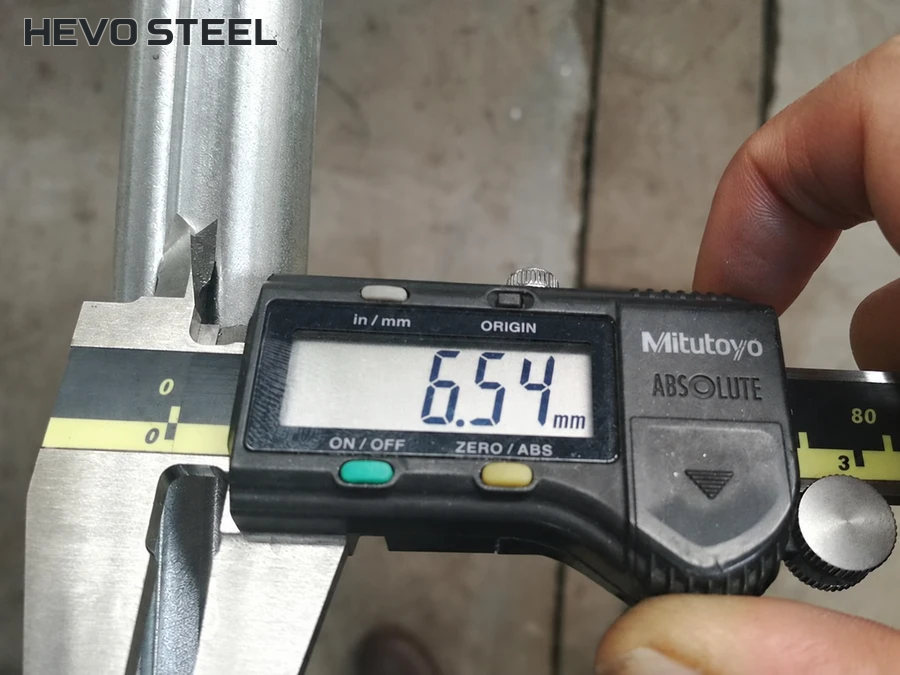

Digital caliper positioned at a longitudinal groove opening.

Keyway Size

Torsion Test

Tensile Test

Contact HEVO STEEL – Precision Drive Shaft Solutions for Garage, Industrial, and Commercial Doors

Experience reliable performance and value-added service with HEVO STEEL ’s drive shaft solutions for all your door system requirements.

The drive shaft transmits rotational force from the motor or manual operator to the door mechanism, enabling smooth opening and closing by winding cables or moving panels, which is essential for the proper operation of sectional, rolling, and industrial doors.

Follow the door-system manufacturer’s inspection and maintenance instructions. The schedule depends on the complete assembly and operating conditions; the shaft supply specification does not replace those instructions.

Signs include unusual noises, difficulty in door movement, visible wear or damage on the shaft, frayed cables, or the door failing to open or close properly; addressing these issues promptly helps prevent further damage.

While minor lubrication and inspection can be done by the owner, repairs or replacements involving the drive shaft, springs, or cables should be performed by a qualified professional due to the high tension and safety risks involved.

Specify the shaft material and the required surface finish on the drawing. Zinc plating, black oxide or another agreed finish must be considered together with the mating components, dimensional allowance and service environment.
